Increased Force Supervised Latching Actuator
For fire suppression systems with mid-range operating pressures. Meets regulatory standards for supervision.
The increased force supervised latching actuator’s integrated supervisory feature provides fully engaged installation detection and eliminates the need for an additional supervisory component and electrical connection. This durable actuator features ultrafast response and is resettable after activation with the optional manual reset tool. The discharge valve interface can be customized to fit your system.
Typical Application
Features and Benefits
- UL/ULC Recognized Component per UL 864
- Fully engaged installation detection
- Ultrafast response
- Integrated supervision with 6-wire standard
- Full metal enclosure with factory-installed wiring
- Resettable after activation
- Component freely rotates for easy installation
- Designed to safeguard against tampering
- Engineering expertise to help achieve UL, FM, CE, LPCB, & VdS certifications and listings
- Safety and Regulations
-
Meets requirements of UL 864, NFPA 2001, Sec. 4.3.4.1, and EN 15004-1
- Patent No.
-
- US 9,062,788
- Downloads
All TLX components are customized to fit system requirements, meaning technical specifications are unique to each customer and design. Examples given on our website are for illustration purposes only.
Is our Increased Force Supervised Latching Actuator the right fit for your application?

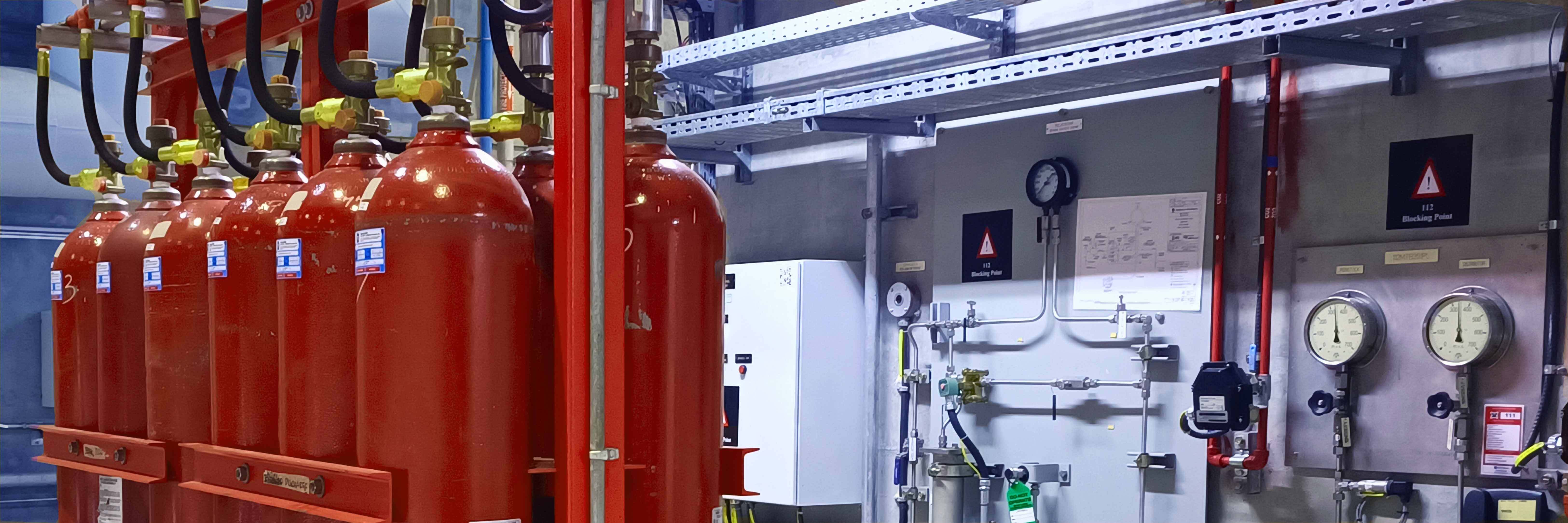

Integrated Supervision for Fire Suppression Systems
A family of supervised latching actuators that meets NFPA 2001: Sec. 4.3.4.1 and EN 15004-1 supervision requirements.
TLX Technologies is your go-to partner for the components that equip tomorrow's most advanced fire protection systems.
Regulatory Compliance
Engineering expertise to help achieve UL, FM, CE, LPCB, & VdS certifications and listings.
Complex Environments
Optimization of actuators and valves for applications that require high pressure and high speed in challenging environments.
Advanced Security
Fully engaged installation detected through integrated supervisory component as required. Designed to safeguard against tampering.
Increased Performance
Designed to handle various actuation force requirements. Durable components can be reset after activation for future use.
Limiting Power Consumption
Latching technology utilized to minimize overall power consumption.
Custom Configuration
Interfacing options available to meet system dimensional differences. Optional manual actuation assembly and reset tool attachment.
