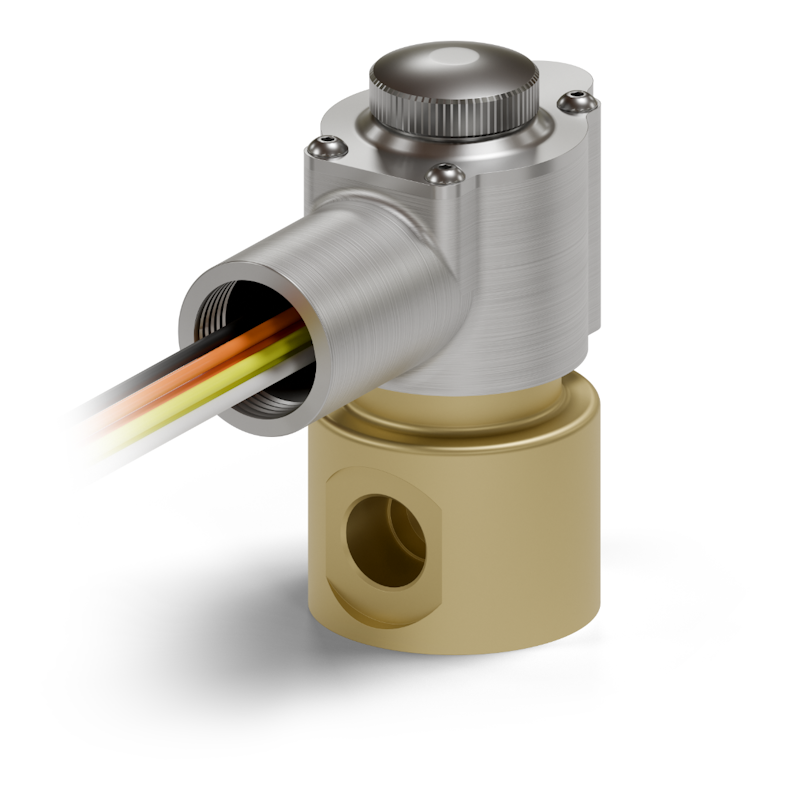

Supervised Direct-Acting Solenoid Valve

This solenoid valve is designed for systems with operating pressures up to 170 bar and features integrated installation supervision.

The patented supervised direct-acting solenoid valve is designed as a normally closed valve. It features a removable coil to allow for periodic testing, as well as a captured fastener that prevents it from being misplaced and ensures full placement of the coil. Integrated supervision indicates if the coil has been properly reinstalled after testing and eliminates the need for an add-on supervisory component.

Typical Application

Supervised Direct Acting Solenoid Valve

Features and Benefits

  • Removable coil for maintenance and testing
  • Fully engaged installation detection
  • Ultrafast response
  • Integrated supervision with 6-wire standard
  • Captured fastener prevents misplacement & completes full placement of the coil
  • Full metal enclosure with factory installed wiring
  • Coil assembly freely rotates for easy installation
  • Designed to safeguard against tampering
  • Engineering expertise to help achieve UL, FM, CE, LPCB & VdS certifications and listings
Safety and Regulations
Meets requirements of NFPA 2001, Sec. 4.3.4.1 and NFPA 13: Sec. 8.3.1.2.1
Patent No.
  • US 10,155,126
  • US 9,890,873
Downloads

All TLX components are customized to fit system requirements, meaning technical specifications are unique to each customer and design. Examples given on our website are for illustration purposes only.

Is our Supervised Direct-Acting Solenoid Valve the right fit for your application?

TLX Technologies partners with the world’s top brands, first-tier suppliers, and OEMs. Contact our engineers today to discuss the details of your project.

Integrated Supervision for Solenoid Valves

A family of supervised direct-acting solenoid valves, with an integrated supervisory feature, that can accommodate the operating pressure of any system up to 300 bar.

TLX Technologies is your go-to partner for the design and development of tomorrow's most advanced fire protection systems.

Regulatory Compliance

Engineering expertise to help achieve UL, FM, CE, LPCB, & VDE certifications and listings.

Complex Environments

Optimization of actuators and solenoids for applications that require high pressure and high speed in challenging environments.

Advanced Security

Fully-engaged installation detected through integrated supervisory component as required. Designed to safeguard against tampering.

Increased Performance

Designed to handle various actuation force requirements. Durable components can be reset for future use.

Limiting Power Consumption

Latching technology utilized to minimize overall power consumption.

Custom Configuration

Interfacing options available to meet system dimensional differences. Optional manual actuation assembly and reset tool attachment.
